Description

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 12” of travel and accepts up to a 37” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. We upgraded the ball joints to heavy duty Moog joints for maximum strength and increased articulation. The lower arms have recessed shock mounting allowing 8" coil overs to fit without any modifications. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!

Specifications

Wheel Travel: 12”
Amount of Lift: 1-3”
Track Width: 3.5” wider per side
Maximum Tire Size: 37”
Maximum Backspacing: 5”
Minimum Rim Size: 17”
Compatible with Sway Bar: Yes (DK-631955)
Bump Stop Size: 2.0” x 2.0”
Coilover & Bypass Shock Size: Dirt King Spec
*Layout & dims available on request (valving info not provided)

Options
This suspension system allows for several different options to suit your needs. The coilovers can be installed with one of the following options, sway bar, bump stops, or bypass shocks. We offer a sway bar kit that adapts our long travel kit to work with the factory sway bar. This will give the vehicle similar on road driving characteristics to stock with minimal sacrifice to the suspension systems performance. The next option is installing bump stops. They will help dampen hard impacts and are cost effective but on the other hand are often noisy. The last option is most commonly used. Adding bypass shocks will fine tune the damping throughout the suspension cycle. They are also completely adjustable to perfect the ride quality.

Shocks
For the best performance and to achieve the full amount of travel you must purchase our spec built coil over shocks or have them custom built based on our shock spec sheet. In addition, our long travel kit is tabbed to accommodate bypass shocks. The bypass shocks will allow for superior suspension dampening and tunability. To mount the bypasses we offer a weld on bypass shock hoop kit (DK-631910) that can be purchased separately. The bypass shock hoop kit requires welding and modifications to the frame. You have the option of installing 2.5” diameter by 8” stroke bypass shocks or 3.0” diameter by 8” stroke bypass shocks.

Wheel Travel
When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve these numbers. Our goal is to build a suspension system with the highest amount of wheel travel without requiring major modifications to the vehicle or compromising its overall drivability.

Tire Info
When installing 37” tires with this kit you must modify the wheel wells to avoid contact at full bump. We have solved this problem by developing complete bolt on front wheel wells for proper tire clearance. The firewall pinch weld will also need to be folded over to clear the 37” tires.

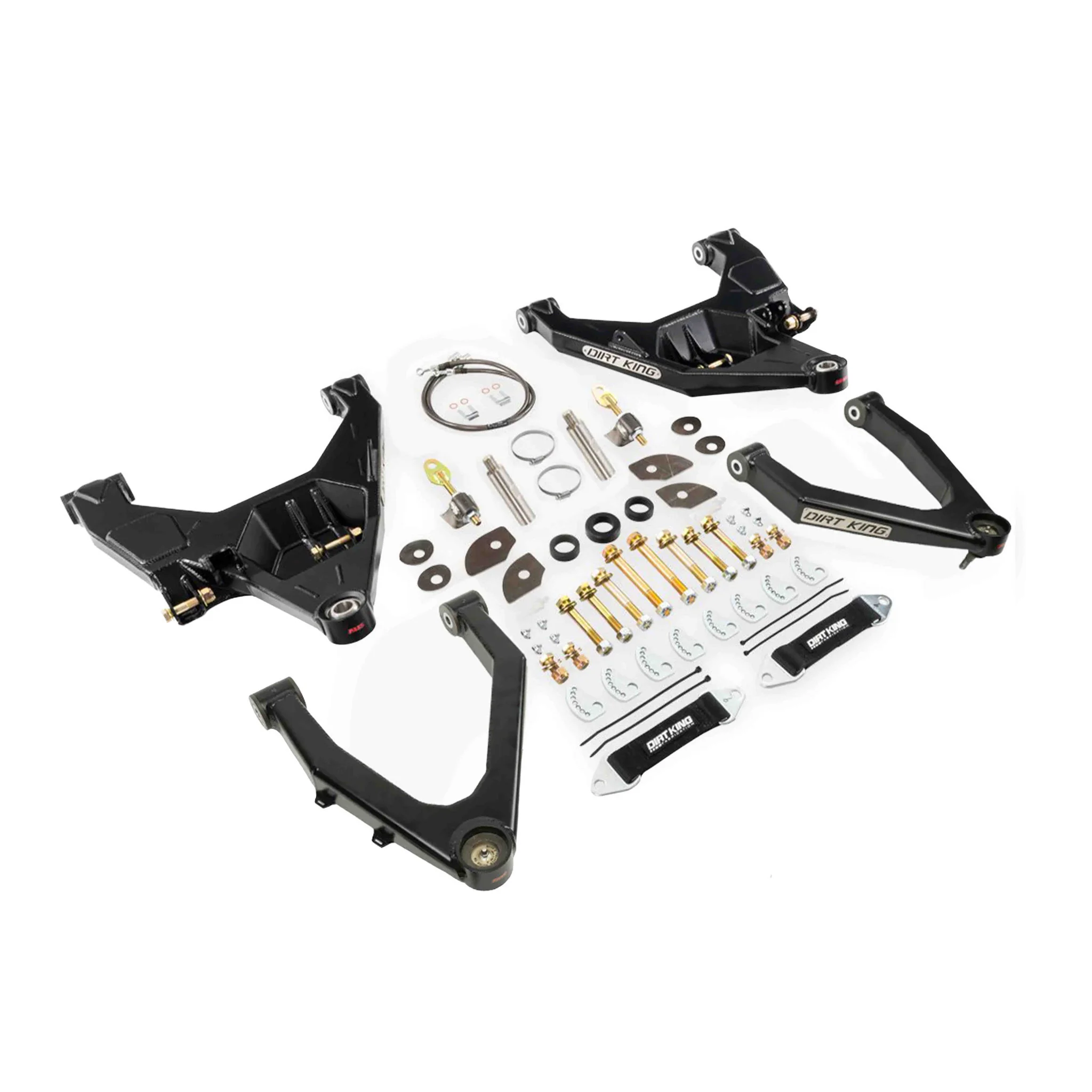

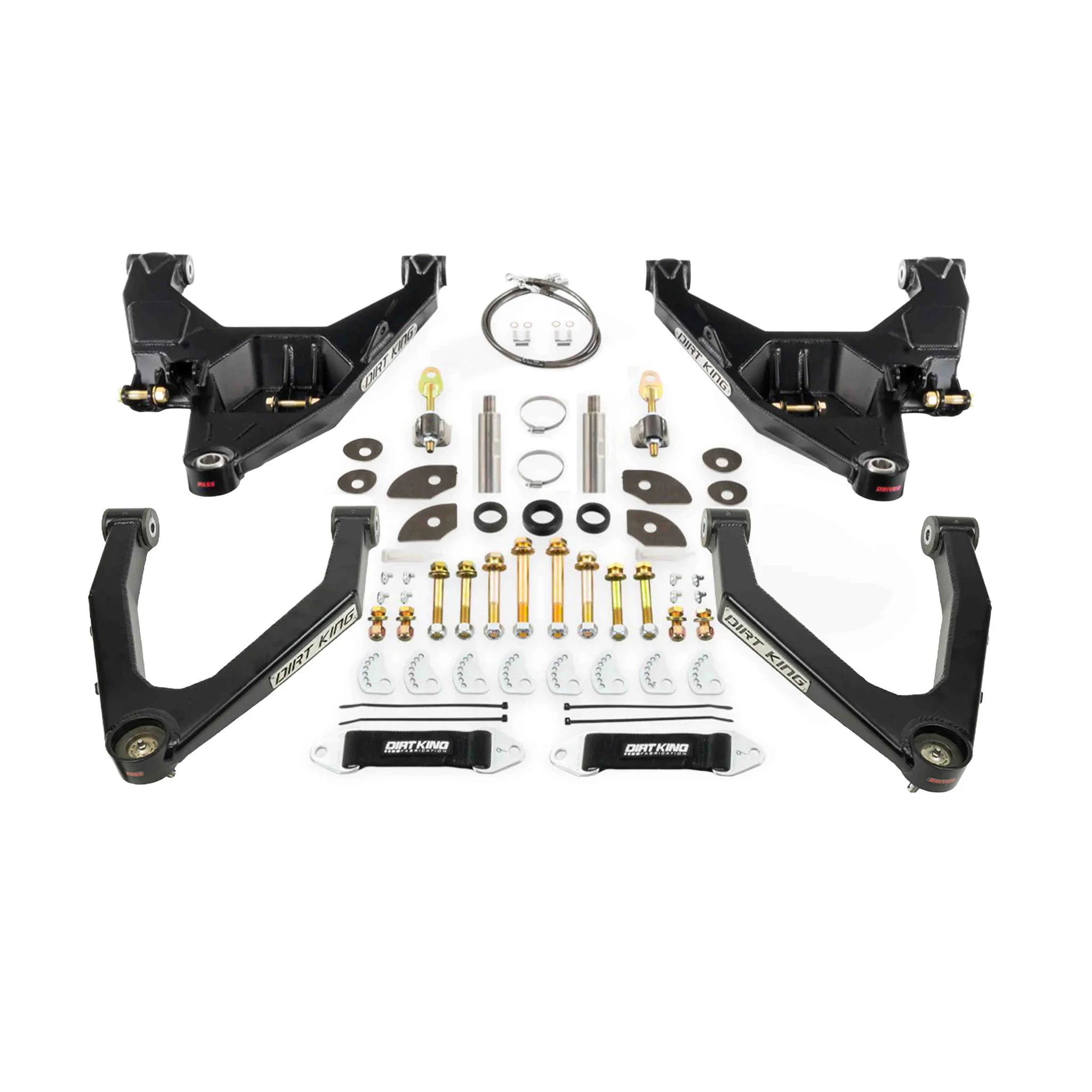

What's Included

Boxed plate upper control arms
Boxed plate lower control arms
9" quad wrapped limit straps
Weld on adjustable limit strap mounts
Moog ball joints
17-4 stainless steel misalignment spacers
17-4 stainless steel tie rod extensions
DOT approved extended brake lines
Grade 8 mounting hardware
Probearing bearings
Delrin steering stops
Lower Arm Weld Washers

Features

Bolt on application, minimal modifications required
Utilizes Probearing bearings
Utilizes Moog ball joints
4130 chromoly uniball cups
4130 chromoly ball joint cups
Delrin bushings for the UCA’s and LCA’s
Zinc plated inner bushing sleeves
Grease fittings for easy servicing
3/16" and 1/8” boxed plate construction
Internally ribbed with extrusions for weight reduction
Bump stop plating
Limit strap tabbing
Bypass tabbing
Ability to adapt factory sway bar

Compatibility

2007-2020 Chevy Tahoe 2WD / 4WD
2007-2020 GMC Yukon 2WD / 4WD
*Front fiberglass required.

*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
