Description

The 3.0” Fox Factory Series Internal Bypass Shocks for the Ford Raptor are direct bolt-on replacement shocks. Designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir. These position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock Raptor shocks.

Specifications

Allows up to 2.5” of Lift
Remote finned reservoir with Recirculating Reservoir Bridge
Precision bored 3.0” diameter shock body
Allows for up to 25% increase in front wheel travel
Completely bolt in OEM replacement application

What's Included

3.0” Fox Internal Bypass Shock
External finned reservoirs w/ DSC adjuster
Teflon lined spherical bearings w/misalignments
All necessary mounting hardware
Installation instructions

Features

Body	3.0" Hard anodized aluminum
External Reservoir	NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
Components	Hard anodized, CNC-machined 6061-T6 billet aluminum
Spring	3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
Shaft	7/8" 17-4 H900 hard chrome plated stainless steel
Piston	Hard anodized 6061-T6 billet aluminum high flow race piston
Valving	Specific for Gen 2 Raptor to maximize performance and comfort
Oil	JM92 Advanced Suspension Fluid
Bearing	Spherical, PFTE-lined, heat-treated steel
Mounting	Heat treated steel spherical heim mounting
Adjustments	Dual Speed Compression (DSC) adjuster Ride-height/spring preload ring

Compatibility

2017-2020 Ford Raptor 4WD

17 Raptor

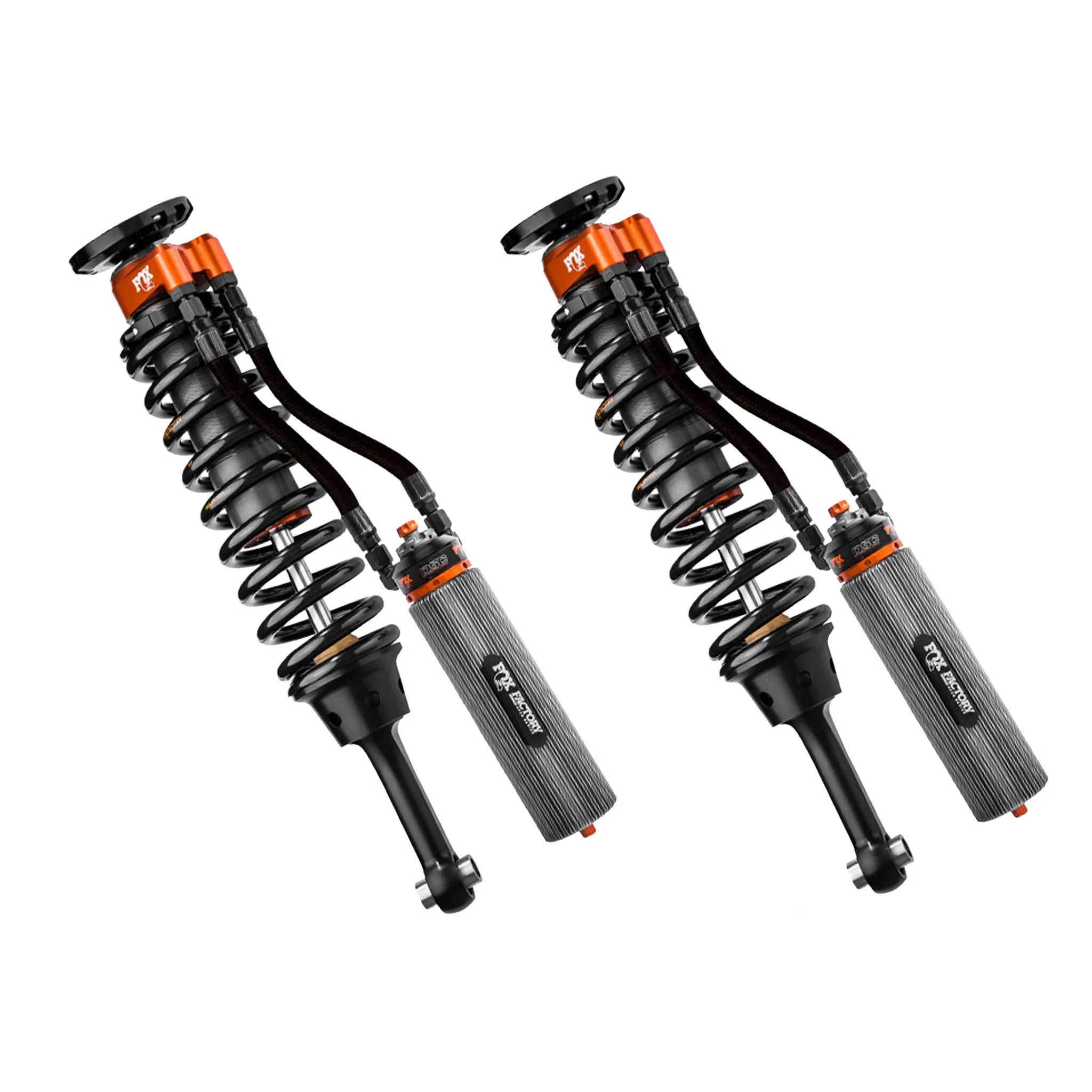

Fox 3.0 Coilovers | Internal Bypass | Finned Reservoir

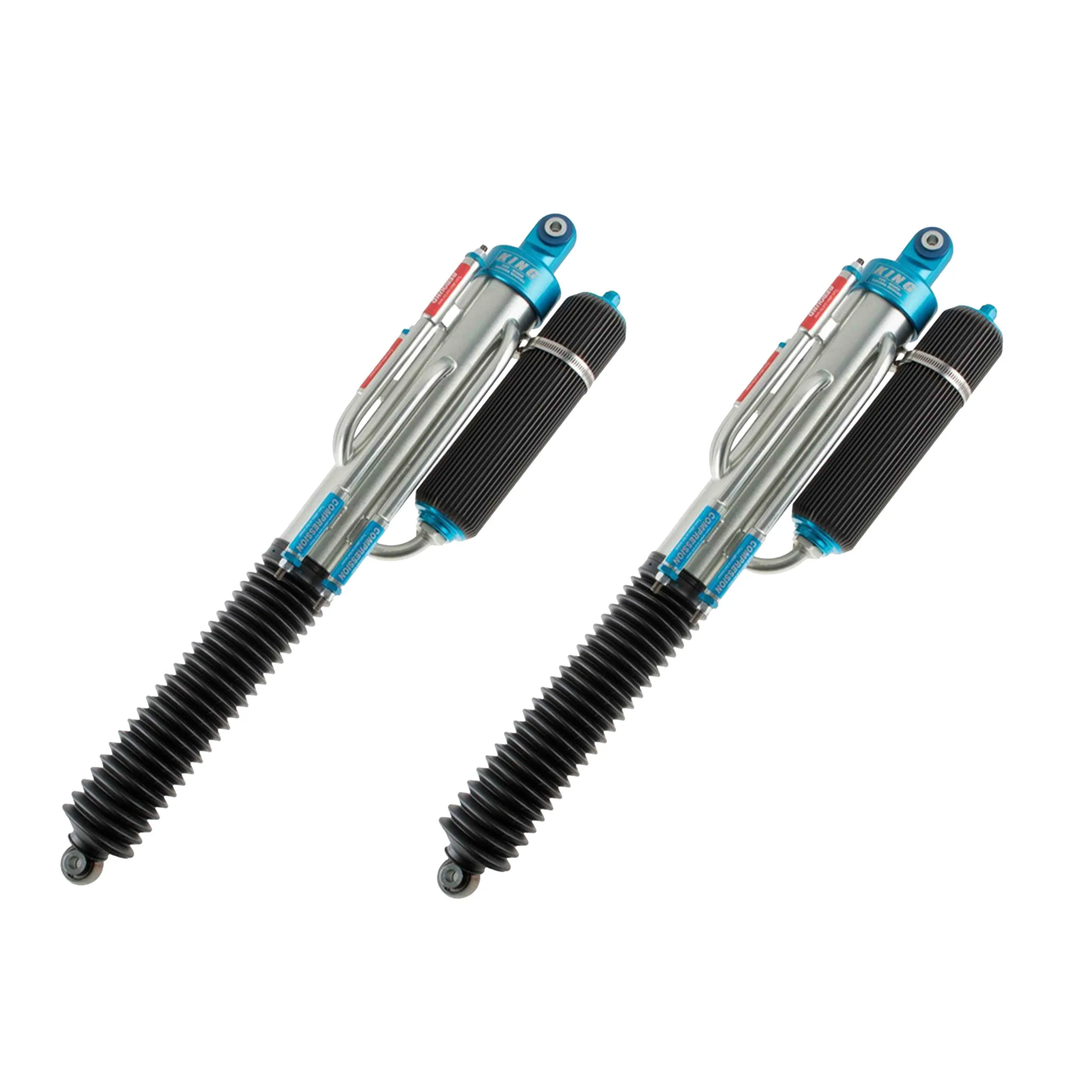

King 3.0 4 Tube Bypasses | Performance Finned Reservoir

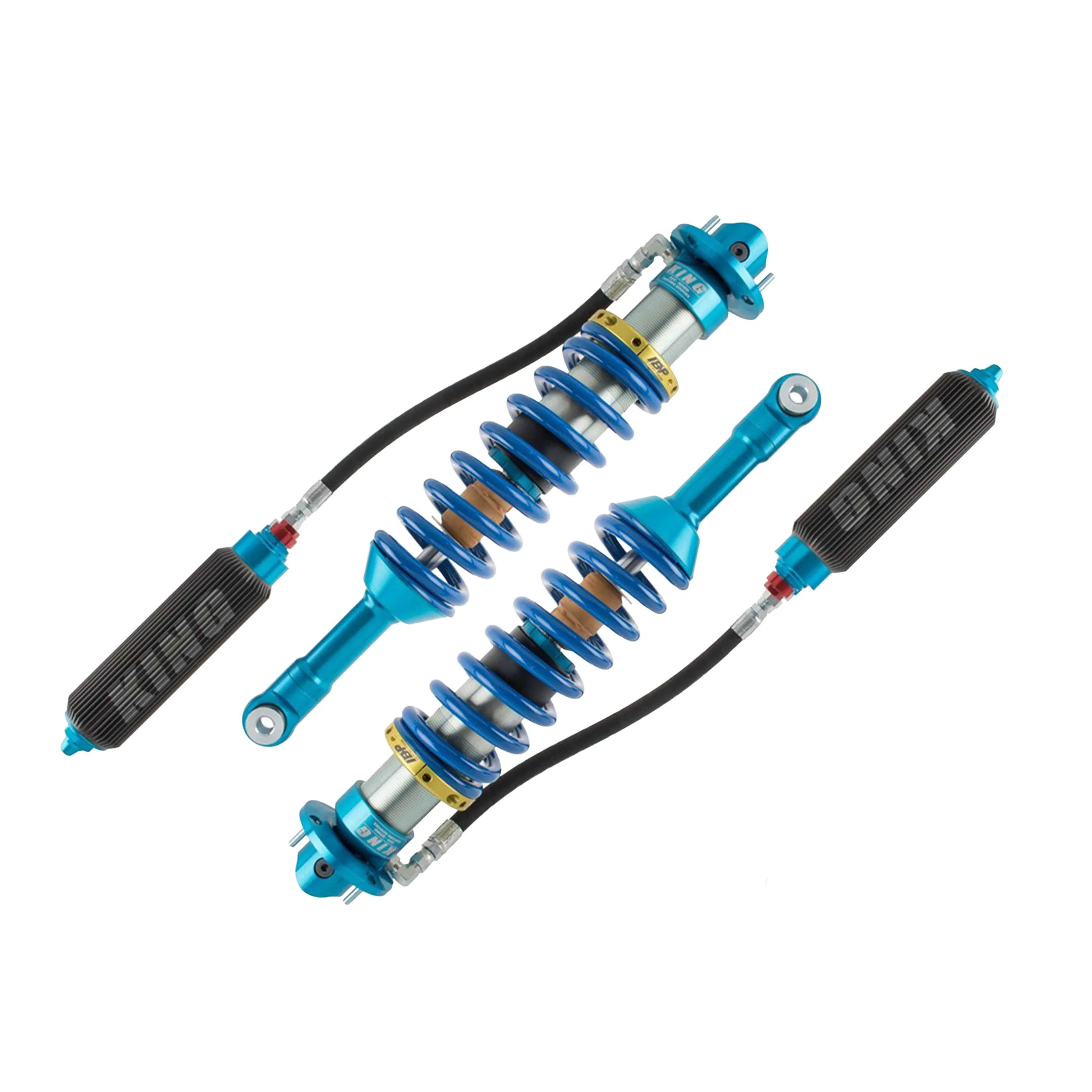

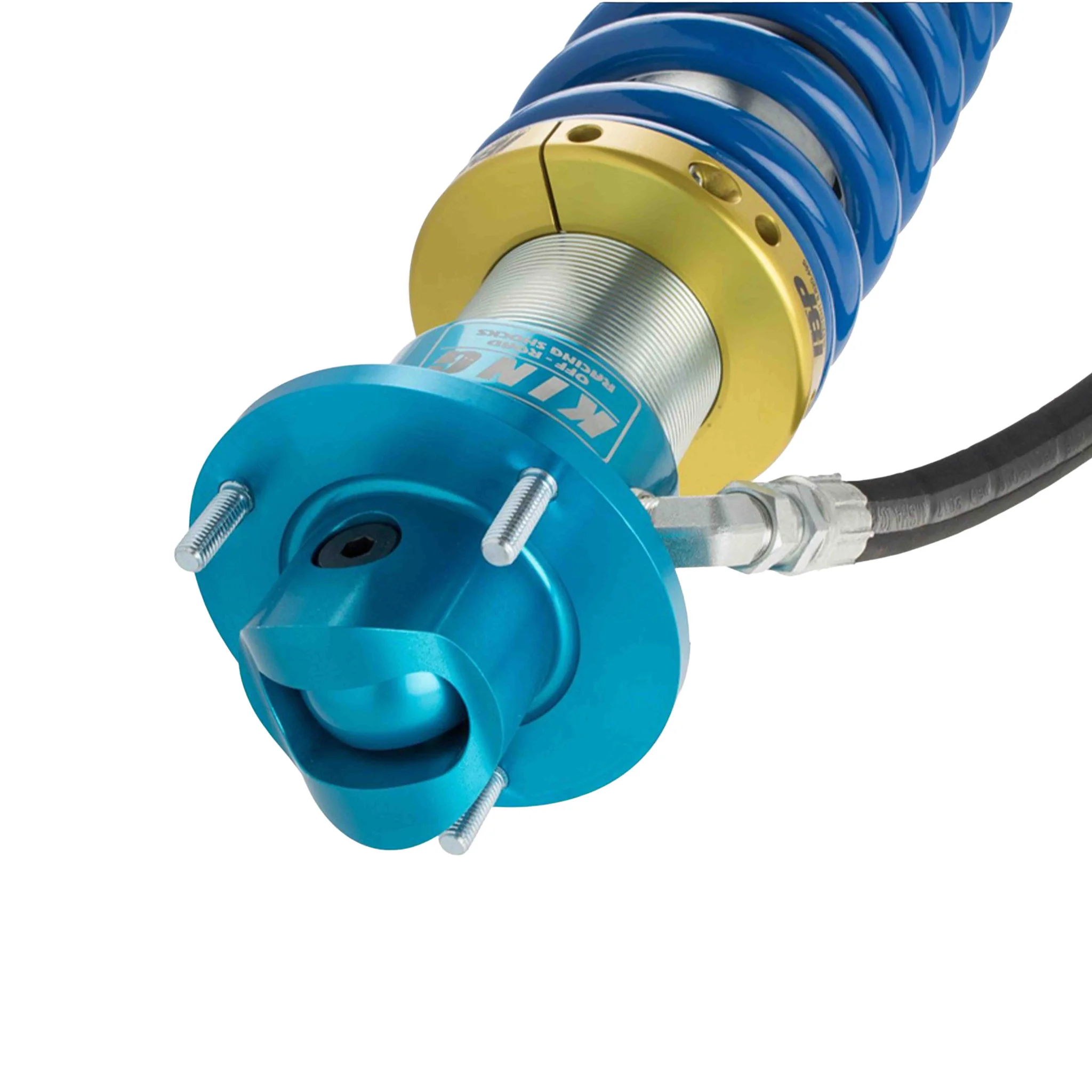

King 3.0 Coilovers | Compression Adjuster

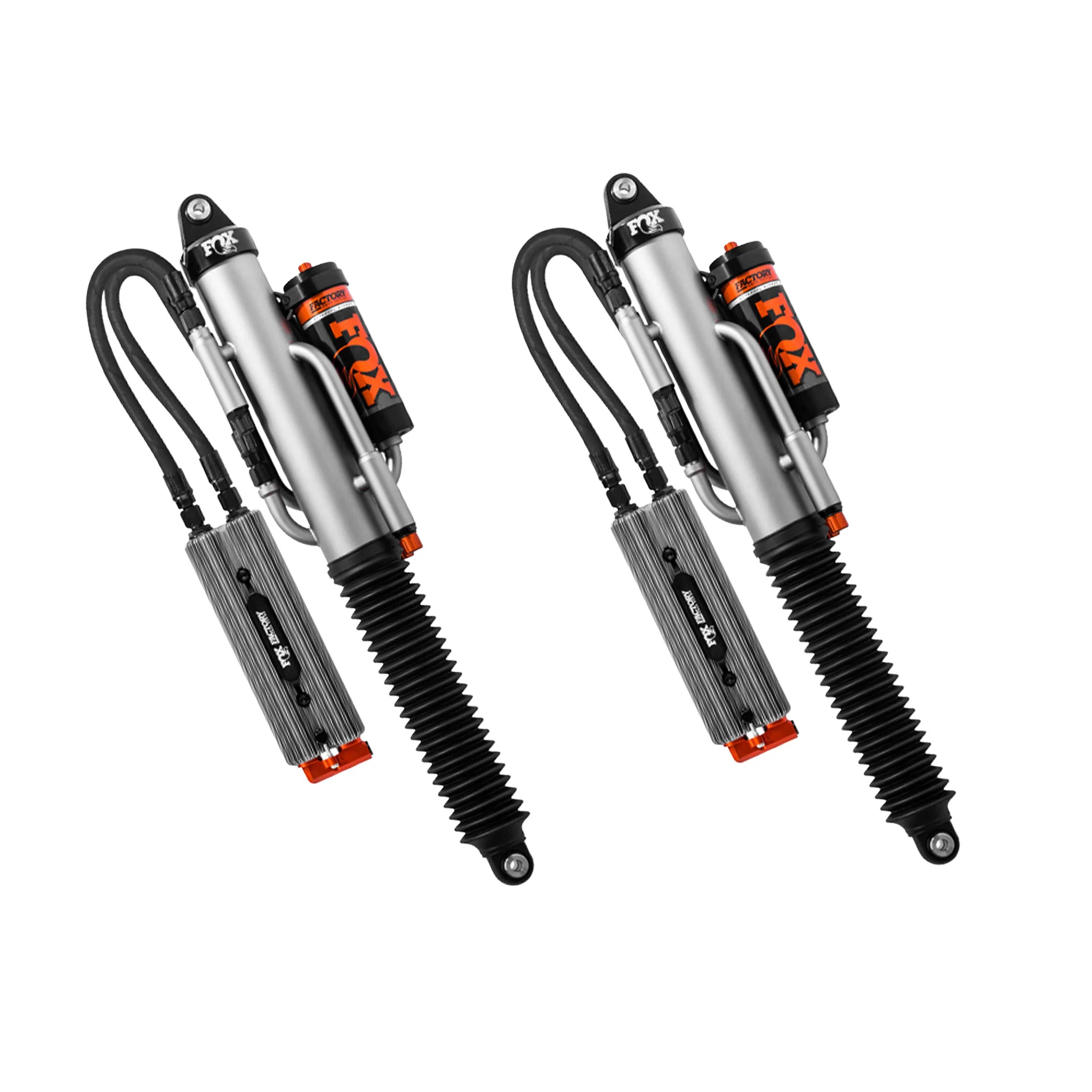

Fox 3.0 Triple Bypasses | QAB | ECS2 Cooling
