Description

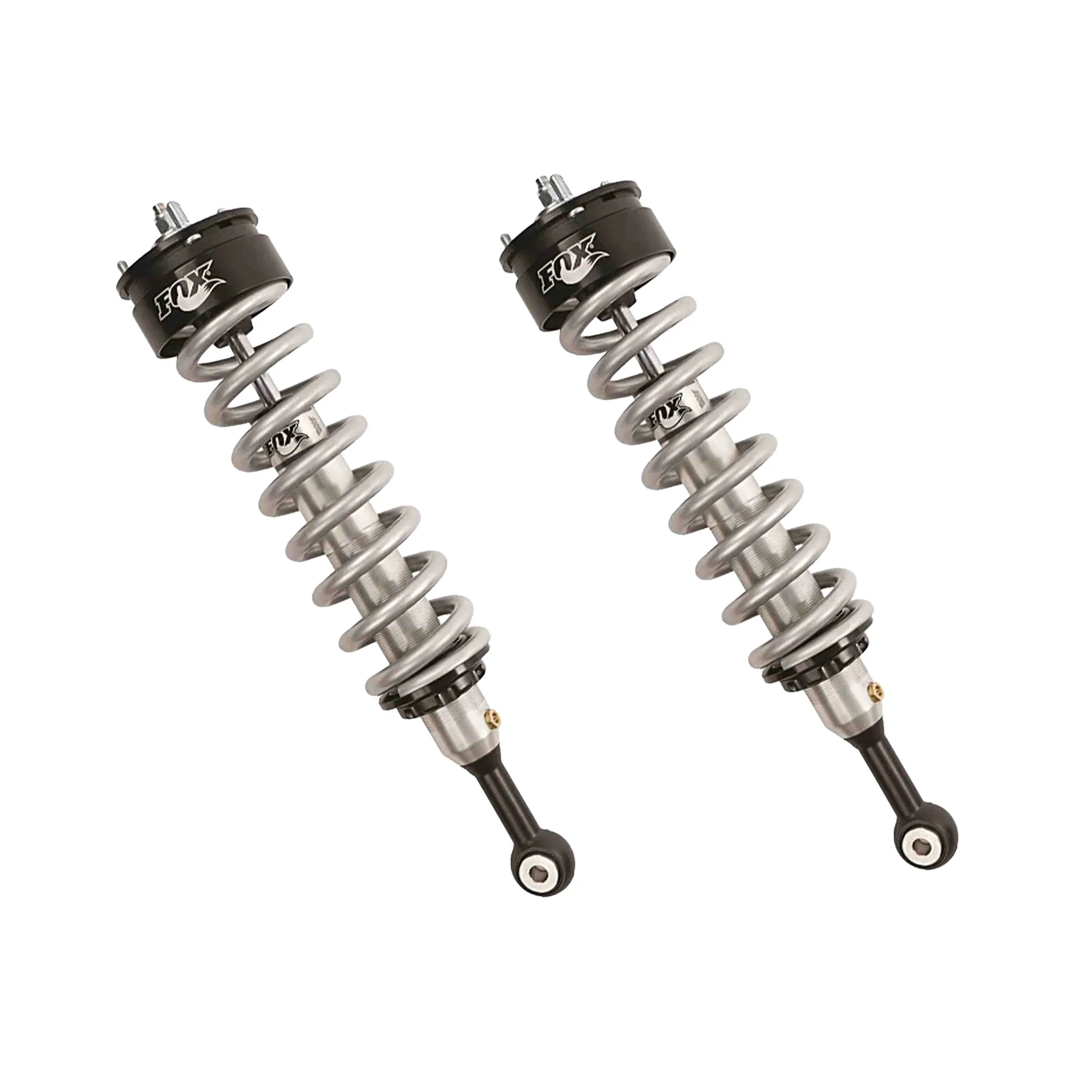

The 2.0” Fox Performance Series coilover IFP shocks for the 4WD Ford F-150 is loaded with advanced technology and a long list of features that set it apart. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series coilover IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

Specifications

Allows up to 2” of Lift
Internal IFP mono-tube reservoir design
Precision bored 2.0” diameter shock body
Allow for up to 15% increase in wheel travel
Completely bolt in OEM replacement application

What's Included

2.0” Fox Performance Series Coilover
Teflon lined spherical bearings w/misalignments
All necessary mounting hardware
Installation instructions

Features

Body	2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating	Clear-anodized for a durable finish
Internal Reservoir	Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing	Large diameter, heavy-duty spherical
Mounting	Direct replacement for stock and aftermarket lifts kits
Adjustments	Ride height preload ring

Compatibility

2004-2020 Ford F-150 4WD
